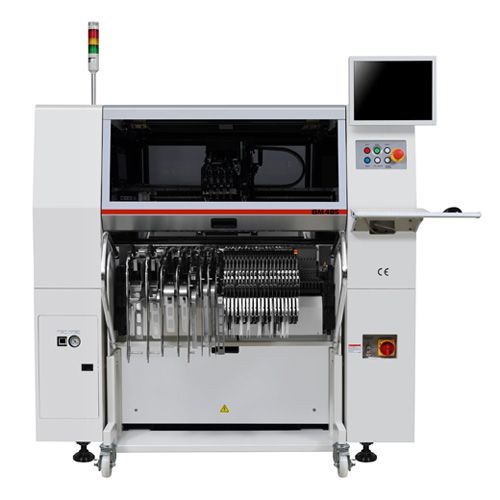

SM485
Wide Ranged Component Placer
SM485
?Spindle/Gantry : 4+1Spindles/1Gantry
?Speed : 22,000CPH
?Parts : 0402~□21mm(H 15mm)/Fly
~□55mm(H 26mm)/Stage
~L150mmx25mm
?Accuracy: ±40?@±3σ/Chip
±30?@±3σ/QFP
?Max.PCB : L460xW400 (Standard)
L740xW460 (Max)
?Force Control head (Option)
?Gripper nozzle (Option)
?Backlight and Laser Lighting (Option)
